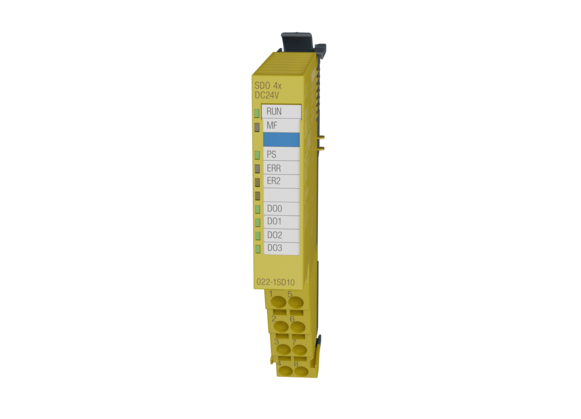

SM 022 - Digital Output - 022-1SD10

• Alimentazione di ingresso
• x No

• Input Voltage
• x No

• Current Consumption
• x No

• Max. current drain at backplane bus
• x No

• Max. current drain load supply
• x No

• Current consumption from backplane bus
• 75 mA

• Current consumption from load voltage L+ (without load)
• x No

• Power Loss
• 1 W

• Number of inputs (digital)
• x No

• Rated load voltage (digital)
• x No

• Current consumption from load voltage L+ (without load)
• x No

• Signal logic input (digital)
• x No

• Input characteristic curve (digital)
• x No

• Initial data size (digital)
• x No

• Number of outputs (digital)
• 4

• Rated load voltage (digital output)
• DC 20.4 - 28.8 V

• Current consumption from load voltage L+ (without load)
• 15

• Signal logic output (digital)
• Sourcing output

• Output data size (digital)
• 4 bit

• Number of inputs (analog)
• x No

• Rated load voltage (analog)
• x No

• Current consumption from load voltage L+ (without load)
• x No

• Voltage inputs (analog)
• x No

• Current inputs (analog)
• x No

• Resolution in bit
• x No

• Measurement principle
• x No

• Basic conversion time
• x No

• Initial data size
• x No

• Number of outputs (analog)
• x No

• Output voltage ranges
• x No

• Output current ranges
• x No

• Resolution in bit (analog)
• x No

• Conversion time (analog)
• x No

• Output data size (analog)
• x No

• Number of counters
• x No

• Counter width
• x No

• Maximum input frequency
• x No

• Maximum count frequency
• x No

• Maximum count frequency
• x No

• Maximum count frequency
• x No

• Maximum count frequency
• x No

• Number of channels
• x No

• Input voltage (rated value)
• x No

• Power stage
• x No

• PWM frequency
• x No

• Type of encoder
• x No

• Encoder frequency
• x No

• Encoder resolution (internal)
• x No

• Control type
• x No

• Terminal voltage max.
• x No

• Terminal current max.
• x No

• Total current per module, max.
• x No

• Number of clamps
• x No

• Binding of potential
• x No

• Point-to-point protocol
• x No

• Encoder Supply: Number of outputs (L+n)
• x No

• Rated output current
• x No

• Port mode
• x No

• Load memory, integrated
• x No

• Work memory, integrated
• x No

• Work memory, maximal
• x No

• Memory card slot
• x No

• Racks, max.
• x No

• Modules per rack, max.
• x No

• Fieldbus
• x No

• Connector
• x No

• Topology
• x No

• Transmission speed, max.
• x No

• Address range inputs, max.
• x No

• Address range outputs, max.
• x No

• Material
• PPE / PPE GF10

• Montaggio
• Profile rail 35 mm

• Width
• 12.9 mm

• Height
• 109 mm

• Depth
• 76.5 mm

• Net weight
• 64 g

• Gross weight
• 85 g

• Certifications
• UL certification, UKCA certification, ChinaRoHS certification

• Safety protocol
• FSoE

• Safety requirements
• SIL CL 3 PL e Kat 4

• Circuit monitoring
• ✓ SI

• Max. operating temperature
• 60 °C
